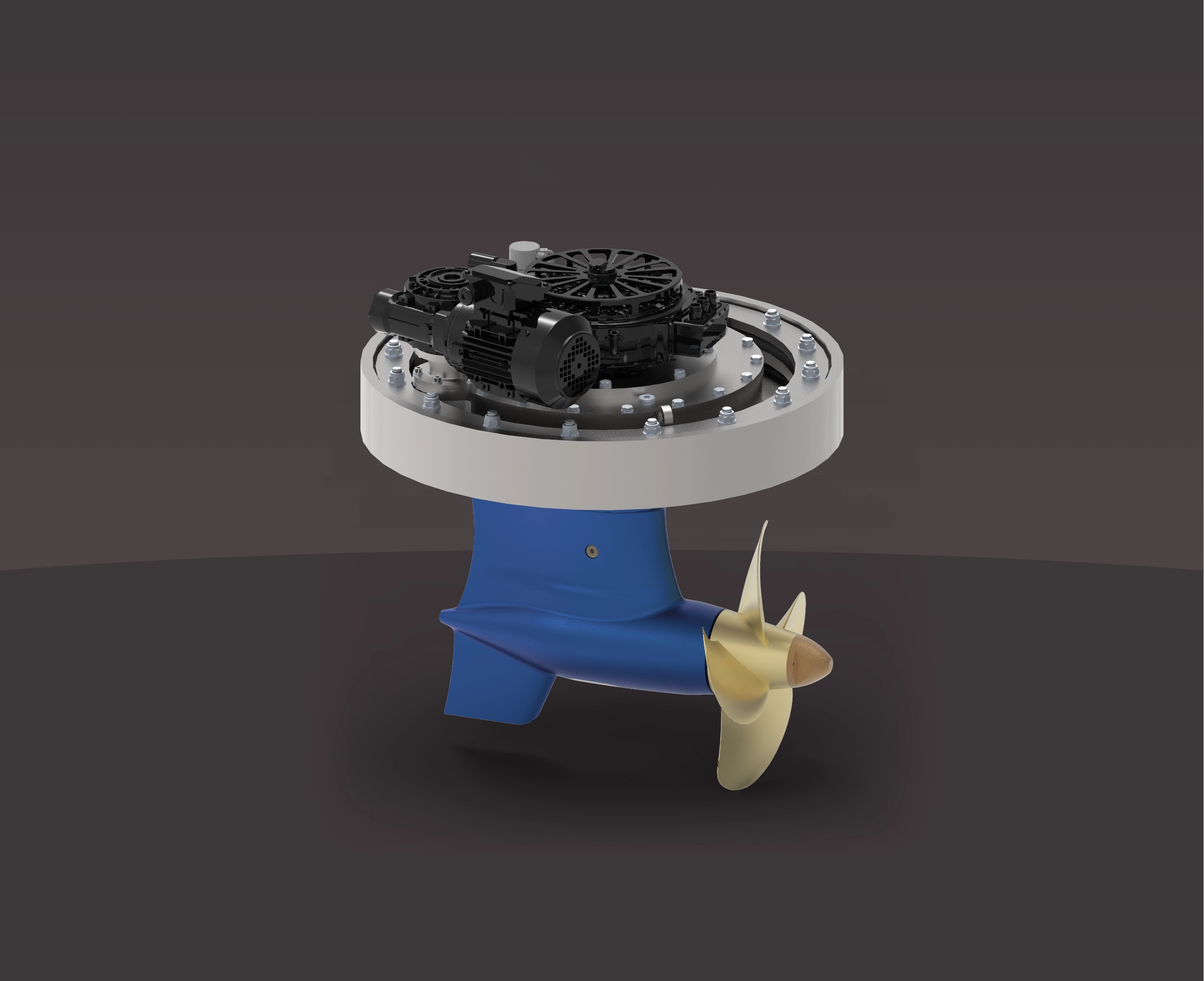

Electric Open Propeller Thrusters
High-efficiency propulsion systems designed for commercial vessels operating at higher cruising speeds.
An open propeller is best when the vessel's speed is above 10 to 13 knots (18 to 24 km/h). The vessel speed determines the optimum propeller diameter. When the vessel speed is rather high, the propeller diameter will be smaller than when the vessel speed is lower.
Read more
Technical information
Data sheet for low and medium vessel speed
| Type | Power kW | Prop diam mm |
| CMA50 | 50 | 450 |
| CMA100 | 100 | 630 |
| CMA150 | 150 | 725 |
| CMA220 | 220 | 900 |
| CMA300 | 300 | 1050 |
| CMA400 | 400 | 1220 |
| CMA500 | 530 | 1350 |
Data sheet for fast vessel speed (Hydrofoil boats)
| Type | Power kW | Prop diam mm |
| CMFA70 | 70 | 300 |
Need a custom configuration?
Propulsion systems are available in multiple power ratings and can be customised to meet your vessel's operational requirements.
Need a custom configuration? Contact our engineering team
ContactOptimizing
performance
Maximum Propeller Efficiency
Current Motion thrusters are designed to accommodate a large propeller diameter, maximising efficiency at low vessel speeds. Thanks to the electric drive and carefully selected gear ratios, the thruster can also run at maximum load with a smaller propeller, since the drive line is engineered to keep the propeller operating within its most efficient range, regardless of diameter.
Low-Noise Operation
To minimise sound levels, Current Motion uses a pulling propeller (tractor) configuration, which creates an optimal wake field ahead of the propeller. This means the propeller can be designed purely for maximum efficiency, without compromises to the blade design to compensate for a disturbed wake field.
Product features
360-Degree rotational capability
Azimuth thrusters can rotate 360 degrees, making vessels highly maneuverable for docking and positioning tasks.
Compact design
Azimuth thrusters are compact and space-efficient, making them ideal for installation on various vessels, including cruise ships, tankers, and transport boats. Despite their small size, they offer powerful propulsion and steering capabilities.
High Thrust-to-Power ratio
Azimuth thrusters provide efficient propulsion for vessels of different sizes and conditions with superior performance in speed, maneuverability, and bollard pull across various marine applications.
Customizable configuration options
Azimuth thrusters are customizable to suit vessel requirements with variations in diameter, power rating, and integration with auxiliary propulsion or dynamic positioning systems.
Advanced control systems
Azimuth thrusters can be connected to advanced control systems for precise manoeuvring. These systems include joystick control, dynamic positioning, autopilot integration, and remote operation. Using these technologies, operators can optimize vessel maneuverability, safety, and efficiency in complex navigational scenarios.
Need advice on the right azimuth thruster?
Choosing the right thruster depends on your vessel, operating profile and performance requirements. Our team helps you determine the best configuration for your application.
Other azimuth thrusters
Ducted Propeller (Nozzle)
View ProductCounter Rotating Propellers (CRP)
View Product
